關于物料條碼生成的實現
企業內對管理的物料（產品、零件、材料等）都可能需要對其進行條碼打印。打印條碼后，貼在物料上，后期可以通過條碼槍來識別該物料。是制造業企業內部物料流轉的重要識別手段
Mobox數據平臺可以通過數據建模來管理各種物料，因此系統提供了一個物料條碼自定義格式打印的功能點。一下是一個例子（給一個產品打條碼）

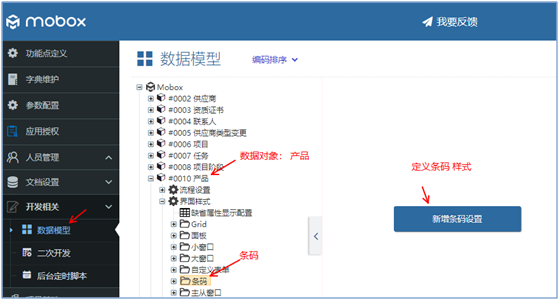

產品數據對象的條碼定義（界面樣式）

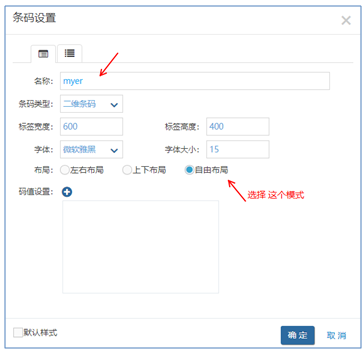

?新建一個樣式

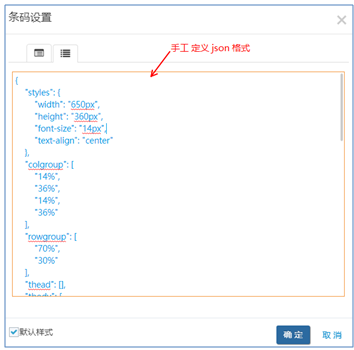

設置自由布局json描述

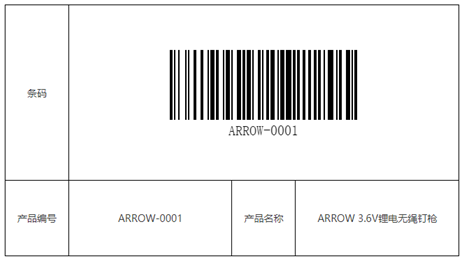

Json 格式1 （2行）
| {
“styles”: { “width”: “650px”, “height”: “360px”, “font-size”: “14px”, “text-align”: “center” }, “colgroup”: [ “14%”, “36%”, “14%”, “36%” ], “rowgroup”: [ “70%”, “30%” ], “thead”: [], “tbody”: [ [ { “type”: “text”, “value”: “條碼” }, { “span”: [ 1, 3 ], “type”: “attr-barcode”, “value”: [ { “type”: “attr”, “value”: “S_GDS_CODE” } ], “compose”: true } ], [ { “type”: “text”, “value”: “產品編號” }, { “type”: “attr”, “value”: “S_GDS_CODE” }, { “type”: “text”, “value”: “產品名稱” }, { “type”: “attr”, “value”: “S_GDS_NAME” } ] ] } |

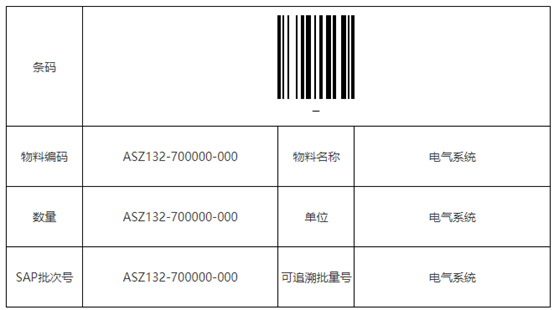

Json 格式2 （4行）
| {
“styles”: { “width”: “650px”, “height”: “360px”, “font-size”: “14px”, “text-align”: “center” }, “colgroup”: [ “14%”, “36%”, “14%”, “36%” ], “rowgroup”: [ “25%”, “25%”, “25%”, “25%” ], “thead”: [], “tbody”: [ [ { “type”: “text”, “value”: “條碼” }, { “span”: [ 1, 3 ], “type”: “attr-barcode”, “value”: [ { “type”: “attr”, “value”: “S_B_CODE” }, { “type”: “text”, “value”: “-” }, { “type”: “attr”, “value”: “S_B_SUPPLIER” } ], “compose”: true } ], [ { “type”: “text”, “value”: “物料編碼” }, { “type”: “attr”, “value”: “S_ITEM_CODE” }, { “type”: “text”, “value”: “物料名稱” }, { “type”: “attr”, “value”: “S_ITEM_NAME” } ], [ { “type”: “text”, “value”: “數量” }, { “type”: “attr”, “value”: “S_ITEM_CODE” }, { “type”: “text”, “value”: “單位” }, { “type”: “attr”, “value”: “S_ITEM_NAME” } ], [ { “type”: “text”, “value”: “SAP批次號” }, { “type”: “attr”, “value”: “S_ITEM_CODE” }, { “type”: “text”, “value”: “可追溯批量號” }, { “type”: “attr”, “value”: “S_ITEM_NAME” } ] ] } |

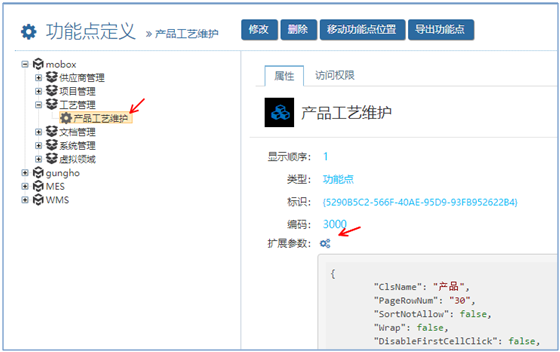

3000功能點里面的頁面按鈕定義
為產品維護的3000功能點里面加入，條碼生成的 頁面按鈕

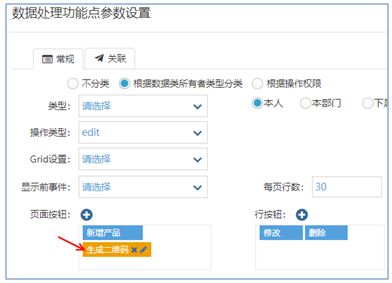

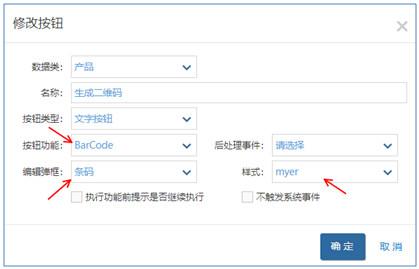

設置頁面按鈕，綁定條碼
注意，目前版本 支持支持頁面按鈕 （不支持 行按鈕）

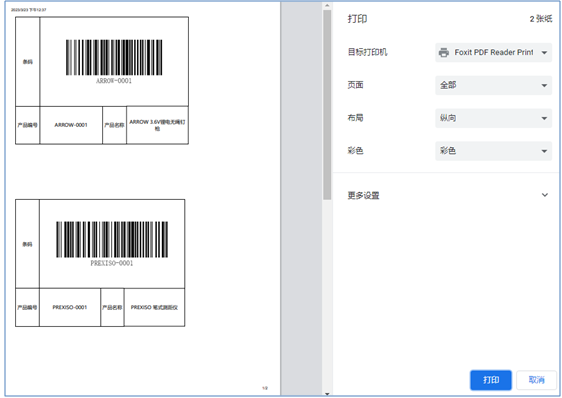

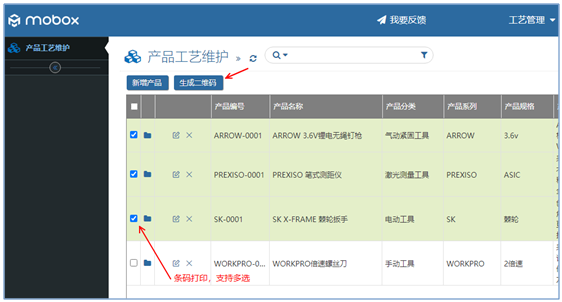

打印條碼
設置紙張大小、排版設置后進行打印
